iT4032D

50-ps wideband phase delay

iT4032D Features

* a single delay element that provides up to 50 ps delay and a 180 deg. shift capability. The delay control can be either differential (using both VCp and VCm) or single-ended (VCp is the active control pad while VCm is shorted to VCref). The nominal control voltage range for the delay is from -2.2 V

iT4032D General Description

The iT4032D is an ultra-wideband phase delay fabricated using 0.1-μm HBT GaAs technology. The high output voltage, excellent rise and fall times, and the high eye diagram quality at all data rates up to 12.5 Gb/s makes the iT4032D suitable for timing adjustment in data and clock distribution at a ve.

iT4032D Datasheet (806.00 KB)

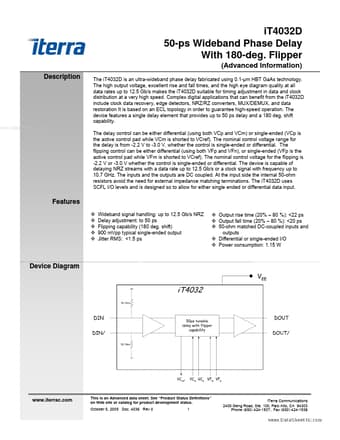

Preview of iT4032D PDF

Datasheet Details

Part number:

iT4032D

Manufacturer:

Iterra

File Size:

806.00 KB

Description:

50-ps wideband phase delay.
