LSP3127 - 52KHz 2A PWM Buck DC/DC Converter

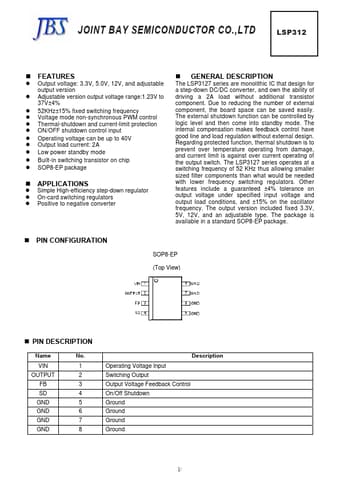

LSP3127 Datasheet Preview — Preview of LSP3127 PDF

Datasheet Details

Part number	LSP3127
Manufacturer	JBS
File Size	272.83 KB
Description	52KHz 2A PWM Buck DC/DC Converter
Datasheet	LSP3127-JBS.pdf

LSP3127 Product details

Description

z z z APPLICATIONS Simple High-efficiency step-down regulator On-card switching regulators Positive to negative converter The LSP3127 series are monolithic IC that design for a step-down DC/DC converter, and own the ability of driving a 2A load without additional transistor component.Due to reducing the number of external component, the board space can be saved easily.The external shutdown function can be controlled by logic level and then come into standby mode.The internal comp

Features

Output voltage: 3.3V, 5.0V, 12V, and adjustable output version Adjustable version output voltage range:1.23V to 37V±4% 52KHz±15% fixed switching frequency Voltage mode non-synchronous PWM control Thermal-shutdown and current-limit protection ON/OFF shutdown control input Operating voltage can be up to 40V Output load current: 2A Low power standby mode Built-in switching transistor on chip SOP8-EP package.
