2SA966 PNP Transistor

2SA966 Description

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-92L Plastic-Encapsulate Transistors 2SA966 TRANSISTOR (PNP) .

2SA966 Applications

* MAXIMUM RATINGS (Ta=25℃ unless otherwise noted ) Symbol Parameter Value Unit VCBO Collector-Base Voltage -30 V VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage -5 V IC Collector Current -Continuous -1.5 A Pc Collector Power Dissipation 0.9 W TJ Junction Temperature

📥 Download Datasheet

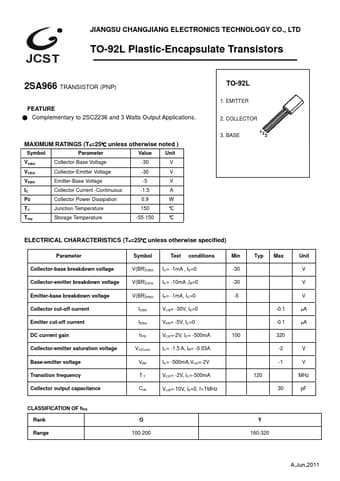

Preview of 2SA966 PDF

Datasheet Details

Part number
2SA966
Manufacturer
JCET
File Size
243.41 KB
Datasheet
2SA966-JCET.pdf
Description
PNP Transistor
