2SA968A, 2SA968 Silicon PNP Transistor

2SA968A Description

: SILICON PNP EPITAXIAL TYPE (PCT PROCESS) 2SA968 2SA968A 2SA968B POWER AMPLIFIER APPLICATIONS.DRIVER STAGE AMPLIFIER APPLICATIONS..

2SA968A Features

* . High Transition Frequency; fT=100MHz (Typ. ) . Complementary to 2SC2238, 2SC2238A, and 2SC2238B Unit in mm i j. 0.3 MAX 03.6±O. Z HT _©i r MAXIMUM RATINGS (Ta=25°c) CHARACTERISTIC Collector-Base Voltage 2SA968 2SA968A 2SA968B Collector- Emitter Voltage 2SA968 2SA968A 2SA968B Emitter-Base Vo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SA968A, 2SA968. Please refer to the document for exact specifications by model.

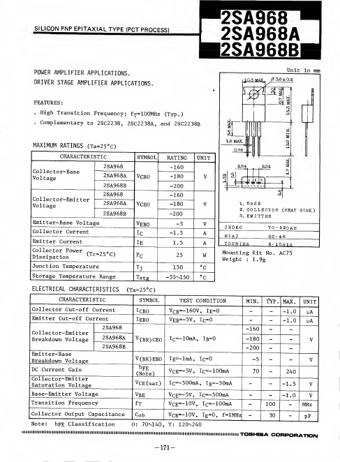

datasheet Preview Page 2

Datasheet Details

Part number
2SA968A, 2SA968
Manufacturer
Toshiba ↗
File Size
93.93 KB
Datasheet
2SA968-Toshiba.pdf
Description
Silicon PNP Transistor
Note
This datasheet PDF includes multiple part numbers: 2SA968A, 2SA968.
Please refer to the document for exact specifications by model.
