2SB1184 PNP Transistor

2SB1184 Description

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-252-2L Plastic-Encapsulate Transistors 2SB1184 TRANSISTOR (PNP) .

2SB1184 Features

* z Low VCE(sat). VCE(sat) = -0.5V (Typ. ) (IC/IB = -2A / -0.2A) z Complements the 2SD1760 / 2SD1864. MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit VCBO Collector Base Voltage -60 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -5 V IC Coll

📥 Download Datasheet

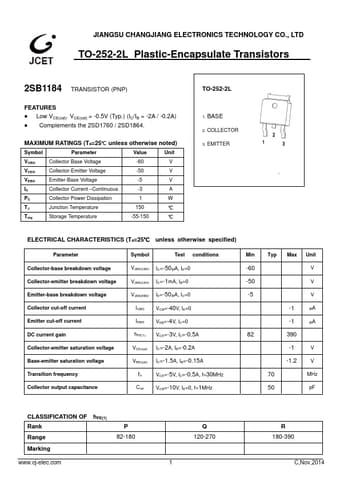

Preview of 2SB1184 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SB1184
Manufacturer
JCET
File Size
796.37 KB
Datasheet
2SB1184-JCET.pdf
Description
PNP Transistor
