BAS40W-06, BAS40W-04 SCHOTTKY BARRIER DIODE

BAS40W-06 Description

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-323 Plastic-Encapsulate Diodes SOT-323 BAS40W/-04/-05/-06 SCHOTTKY BARRIER DIODE .

BAS40W-06 Features

* z Low Forward Voltage z Fast Switching BAS40W MARKING: 43
* MARKING: BAS40W BAS40W-06 MARKING: 46 BAS40W-05 MARKING：45 BAS40W-04 MARKING：44 BAS40W-06 BAS40W-05 BAS40W-04 Solid dot = Green molding compound device,if none, the normal device. Maximum Ratings @Ta=25℃ Parameter Symbol Lim

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS40W-06, BAS40W-04. Please refer to the document for exact specifications by model.

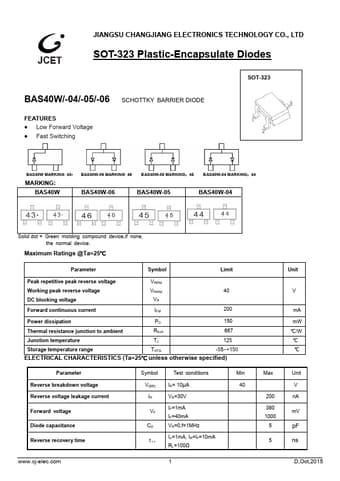

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS40W-06, BAS40W-04
Manufacturer
JCET
File Size
638.58 KB
Datasheet
BAS40W-04-JCET.pdf
Description
SCHOTTKY BARRIER DIODE
Note
This datasheet PDF includes multiple part numbers: BAS40W-06, BAS40W-04.
Please refer to the document for exact specifications by model.
