DTA114YCA - PNP Digital Transistor

Product Overview

JCET

📥 Download Datasheet

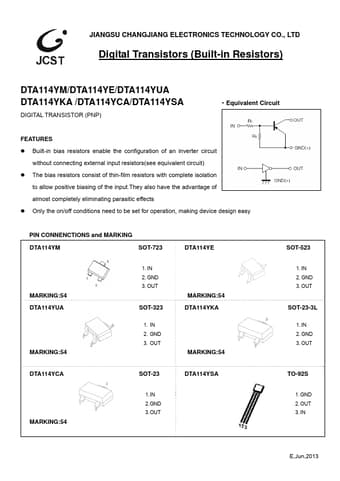

DTA114YCA PNP Digital Transistor by JCET - Datasheet Preview — Datasheet preview – DTA114YCA

Datasheet Details

Part number	DTA114YCA, DTA114YM
Manufacturer	JCET
File Size	286.64 KB
Description	PNP Digital Transistor
Datasheet	DTA114YM-JCET.pdf
Note	This datasheet PDF includes multiple part numbers: DTA114YCA, DTA114YM. Please refer to the document for exact specifications by model.
Additional preview pages of the DTA114YCA datasheet.

Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy PIN.
