DTC123YCA - Digital transistors

Product Overview

JCET

📥 Download Datasheet

DTC123YCA Digital transistors by JCET - Datasheet Preview — Datasheet preview – DTC123YCA

Datasheet Details

Part number	DTC123YCA
Manufacturer	JCET
File Size	123.60 KB
Description	Digital transistors
Datasheet	DTC123YCA Datasheet
Note	This datasheet PDF includes multiple part numbers: DTC123YCA, DTC123YE. Please refer to the document for exact specifications by model.

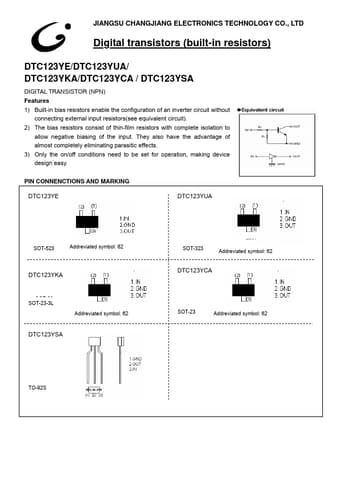

Additional preview pages of the DTC123YCA datasheet.

Product details

Features

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making device design easy. PIN.
