DTESD3V3LED02

ESD Protection Diode

DTESD3V3LED02 Features

* Uni-directional ESD protection of one line

* Reverse stand

* off voltage: 3.3V

* Low reverse clamping voltage

* Low leakage current

* Excellent package:1.0mm×0.6mm×0.5mm

* Fast response time

* JESD22-A114-B ESD Rating of class 3B per human body model

* IEC 61

DTESD3V3LED02 General Description

Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, high level of ESD protection makes them a .

DTESD3V3LED02 Datasheet (637.00 KB)

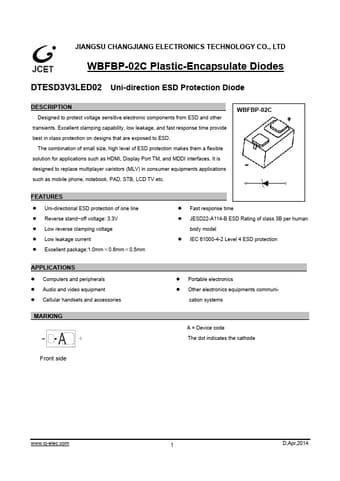

Preview of DTESD3V3LED02 PDF

Datasheet Details

Part number:

DTESD3V3LED02

Manufacturer:

JCET

File Size:

637.00 KB

Description:

Esd protection diode.
