DTESDBLC5V0LED02

ESD Protection Diode

DTESDBLC5V0LED02 Features

* Bi-directional ESD protection of one line

* Low capacitance: 12pF(Typ.)

* Low reverse stand

* off voltage: 5.0V

* Low reverse clamping voltage

* Low leakage current

* Excellent package:1.0mm×0.6mm×0.5mm

* Fast response time

* JESD22-A114-B ESD Rating of class

DTESDBLC5V0LED02 General Description

Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high.

DTESDBLC5V0LED02 Datasheet (724.30 KB)

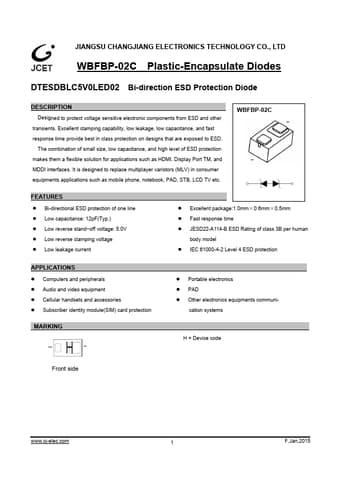

Preview of DTESDBLC5V0LED02 PDF

Datasheet Details

Part number:

DTESDBLC5V0LED02

Manufacturer:

JCET

File Size:

724.30 KB

Description:

Esd protection diode.
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD WBFBP-02C Plastic-Encapsulate Diodes DTESDBLC5V0LED02 Bi-direction ESD Protection Diode DESCRIPTI.
