DTESDB5V0LED02

ESD Protection Diode

DTESDB5V0LED02 Features

* z Stand

* off Voltage: 5.0 V z Low Leakage z Response Time is Typically < 1 ns z ESD Rating of Class 3 (> 16 kV) Per Human Body Model z IEC61000

* 4

* 2 Level 4 ESD Protection z IEC61000

* 4

* 4 Level 4 EFT Protection z This is a Pb

* Free Device MARKING：EB Maxi

DTESDB5V0LED02 General Description

The DTESDB5V0LED02 is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, MP3 players, di.

DTESDB5V0LED02 Datasheet (348.34 KB)

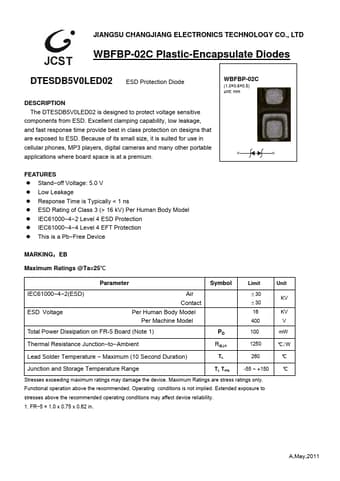

Preview of DTESDB5V0LED02 PDF

Datasheet Details

Part number:

DTESDB5V0LED02

Manufacturer:

JCET

File Size:

348.34 KB

Description:

Esd protection diode.
