ESDL24VAE1 Datasheet, Diode, JCET

ESDL24VAE1 Features

  • Diode z Uni-directional ESD protection of one line z Low reverse stand
  • off voltage: 24V z Low reverse clamping voltage z Low leakage current
  • Excellent package:0.62mm×0.32mm×

PDF File Details

Part number:

ESDL24VAE1

Manufacturer:

JCET

File Size:

1.10MB

Download:

📄 Datasheet

Description:

Esd protection diode. Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage

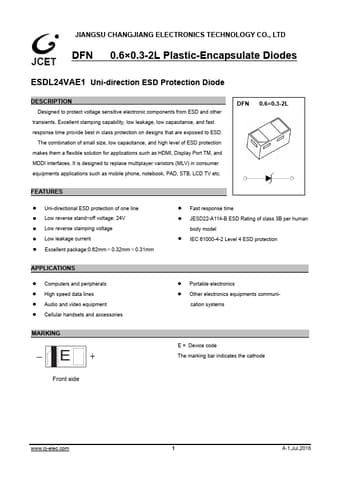

Datasheet Preview: ESDL24VAE1 📥 Download PDF (1.10MB)
Page 2 of ESDL24VAE1 Page 3 of ESDL24VAE1

ESDL24VAE1 Application

  • Applications such as HDMI, Display Port TM, and MDDI interfaces. It is designed to replace multiplayer varistors (MLV) in consumer equipments applic
