ESDBKV5V0D3

ESD Protection Diode

ESDBKV5V0D3 Features

* Bi-directional ESD protection of one line

* Low capacitance: 2pF

* Low reverse stand

* off voltage: 5V

* Low reverse clamping voltage

* Low leakage current

* Excellent package:1.7mm×1.3mm×1.0mm

* Fast response time

* JESD22-A114-B ESD Rating of class 3B per h

ESDBKV5V0D3 General Description

Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high.

ESDBKV5V0D3 Datasheet (773.17 KB)

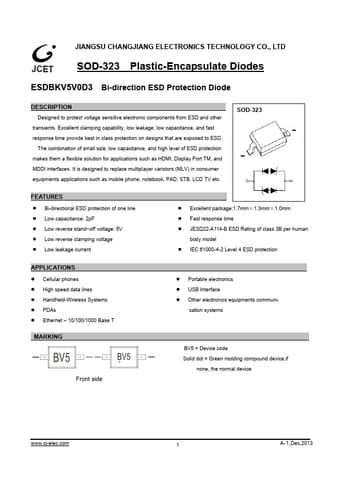

Preview of ESDBKV5V0D3 PDF

Datasheet Details

Part number:

ESDBKV5V0D3

Manufacturer:

JCET

File Size:

773.17 KB

Description:

Esd protection diode.
