ESDB0501B2C - Surface Mount TVS

ESDB0501B2C Description

ESDB0501B2C Surface Mount TVS For ESD Protection Diode P b Lead(Pb)-Free .

ESDB0501B2C Features

* Stand-o Voltage : 5.0V
* Low Leakage
* Response Time is Typically < 1 ns
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* IEC61000
* 4
* 2 Level 4 ESD Protection
* IEC61000
* 4
* 4 Level 4 EFT Protection
* These are Pb
* Free Devic

ESDB0501B2C Applications

* Cellular Handsets & Accessories
* Personal Digital Assistants (PDAs)
* Notebooks & Handhelds
* Portable Instrumentation
* Digital Cameras
* Peripherals
* MP3 Players Mechanical Characteristics: Total Power Dissipation 100m Watts Reverse WorkingVoltage 5.0 Volts + TOP

📥 Download Datasheet

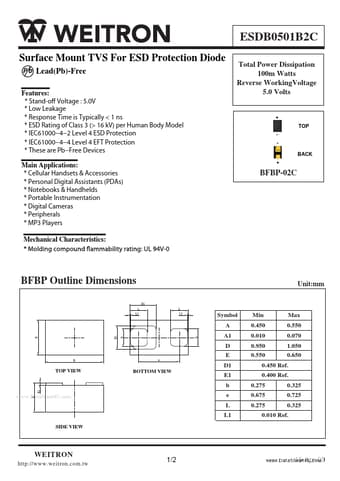

Preview of ESDB0501B2C PDF
datasheet Preview Page 2
