ESDB101 - Single Phase Fast Recovery Bridge Rectifier

Product Overview

MCC

📥 Download Datasheet

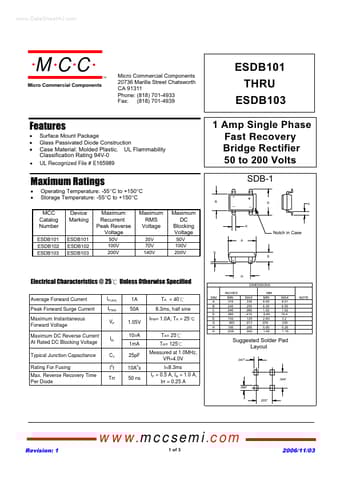

ESDB101 Single Phase Fast Recovery Bridge Rectifier by MCC - Datasheet Preview — Datasheet preview – ESDB101

Datasheet Details

Part number	ESDB101
Manufacturer	MCC
File Size	108.53 KB
Description	Single Phase Fast Recovery Bridge Rectifier
Datasheet	ESDB101 Datasheet
Additional preview pages of the ESDB101 datasheet.

Product details

Features

x.
Surface Mount Package Glass Passivated Diode Construction Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 UL Recognized File # E165989 Maximum Ratings.
Operating Temperature: -55 °C to +150°C Storage Temperature: -55°C to +150°C MCC Catalog Number ESDB101 ESDB102 ESDB103 ∼ + ∼ D C Device Marking Maximum Recurrent Peak Reverse Voltage 50V 100V 200V Maximum RMS Voltage 35V 70V 140V Maximum DC Blocking Voltage 5.
