ESDB102 - Single Phase Fast Recovery Bridge Rectifier

Product Overview

MCC

📥 Download Datasheet

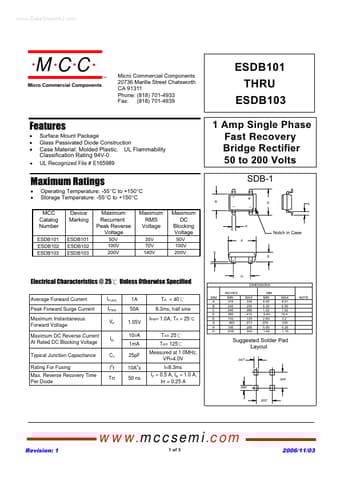

ESDB102 Single Phase Fast Recovery Bridge Rectifier by MCC - Datasheet Preview — Datasheet preview – ESDB102

Datasheet Details

Part number	ESDB102
Manufacturer	MCC
File Size	108.53 KB
Description	Single Phase Fast Recovery Bridge Rectifier
Datasheet	ESDB102 Datasheet
Note	This datasheet PDF includes multiple part numbers: ESDB102, ESDB101. Please refer to the document for exact specifications by model.
Additional preview pages of the ESDB102 datasheet.

Product details

Features

x.
Surface Mount Package Glass Passivated Diode Construction Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 UL Recognized File # E165989 Maximum Ratings.
Operating Temperature: -55 °C to +150°C Storage Temperature: -55°C to +150°C MCC Catalog Number ESDB101 ESDB102 ESDB103 ∼ + ∼ D C Device Marking Maximum Recurrent Peak Reverse Voltage 50V 100V 200V Maximum RMS Voltage 35V 70V 140V Maximum DC Blocking Voltage 5.
