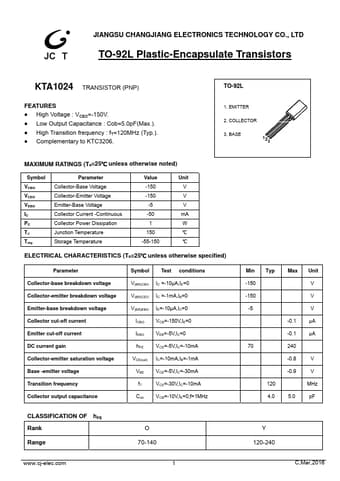

KTA1024 Datasheet, Transistor, JCET

KTA1024 Features

• Transistor z High Voltage : VCEO=-150V. z Low Output Capacitance : Cob=5.0pF(Max.). z High Transition frequency : fT=120MHz (Typ.). z Complementary to KTC3206. TO-92L 1. EMITTER 2. COLLECTOR 3. B

PDF File Details

Part number:

KTA1024

Manufacturer:

JCET

File Size:

2.05MB

Download:

📄 Datasheet

Description:

Pnp transistor.
