KTA1040L, KTA1040D - EPITAXIAL PLANAR PNP TRANSISTOR

KTA1040L Description

SEMICONDUCTOR TECHNICAL DATA KTA1040D/L EPITAXIAL PLANAR PNP TRANSISTOR GENERAL PURPOSE APPLICATION.DPAK FOR SVRFACE MOUNT APPLICATIONS..

KTA1040L Features

* ᴌLow Collector Saturation Voltage : VCE(sat)=-1.0V(Max. ) at IC=-2A, IB=-0.2A. ᴌStraight Lead (IPAK, "L" Suffix) ᴌComplementary to KTC2020D/L. MAXIMUM RATING (Ta=25ᴱ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current VCBO V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KTA1040L, KTA1040D. Please refer to the document for exact specifications by model.

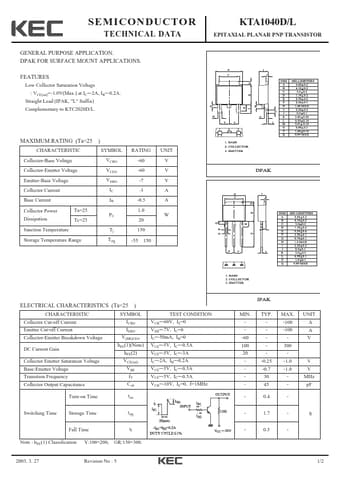

datasheet Preview Page 2

Datasheet Details

Part number
KTA1040L, KTA1040D
Manufacturer
KEC
File Size
747.49 KB
Datasheet
KTA1040D-KEC.pdf
Description
EPITAXIAL PLANAR PNP TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: KTA1040L, KTA1040D.
Please refer to the document for exact specifications by model.
