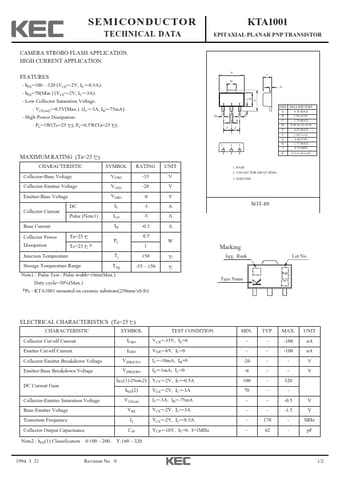

KTA1001 Datasheet, Transistor, KEC

KTA1001 Features

• Transistor hFE=100 320 (VCE=-2V, IC=-0.5A). hFE=70(Min.) (VCE=-2V, IC=-3A). Low Collector Saturation Voltage. : VCE(sat)=-0.5V(Max.) (IC=-3A, IB=-75mA). High Power Dissipation. : PC=1W(Tc=25 ), PC

PDF File Details

Part number:

KTA1001

Manufacturer:

KEC

File Size:

43.68kb

Download:

📄 Datasheet

Description:

Epitaxial planar pnp transistor.
