DTA143ZE, DTA143ZM, PNP Digital Transistor

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD Digital Transistors (Built-in Resistors) DTA143ZM/DTA143ZE/DTA143ZUA DTA143ZKA /DTA143ZCA/DTA143ZS.

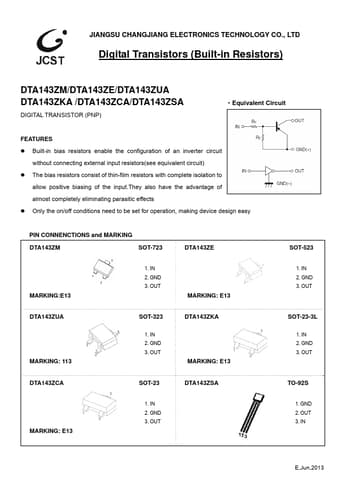

datasheet Preview Page 1 from Datasheet4u.com

DTA143ZM-JCST.pdf

DTA143ZE Datasheet Preview — This datasheet PDF includes multiple part numbers: DTA143ZE, DTA143ZM. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTA143ZE, DTA143ZM

Manufacturer:

JCST

File Size:

457.81 KB

Description:

PNP Digital Transistor

Note:

This datasheet PDF includes multiple part numbers: DTA143ZE, DTA143ZM.
Please refer to the document for exact specifications by model.

Features

* Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)
* The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of alm
