1N4935 - 1.0 Amp. Fast Recovery Rectifiers

Product Overview

JGD

Part number	1N4935
Manufacturer	JGD
File Size	366.54 KB
Description	1.0 Amp. Fast Recovery Rectifiers
Datasheet	1N4935 Datasheet
Note	This datasheet PDF includes multiple part numbers: 1N4935, 1N4933. Please refer to the document for exact specifications by model.
Additional preview pages of the 1N4935 datasheet.

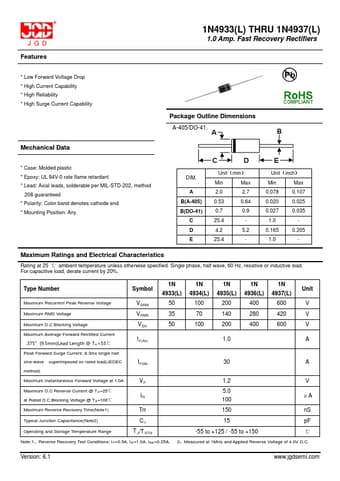

1N4933(L) THRU 1N4937(L) 1.0 Amp. Fast Recovery Rectifiers.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability Mechanical Data Package Outline Dimensions A-405/DO-41：.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed.
Polarity: Color band denotes cathode end.
Mounting Position: Any DIM. A B(A-405) B(DO-41) C D E Unit（mm.
