Features
* Low Forward Voltage Drop * High Current Capability * High Reliability * High Surge Current Capability

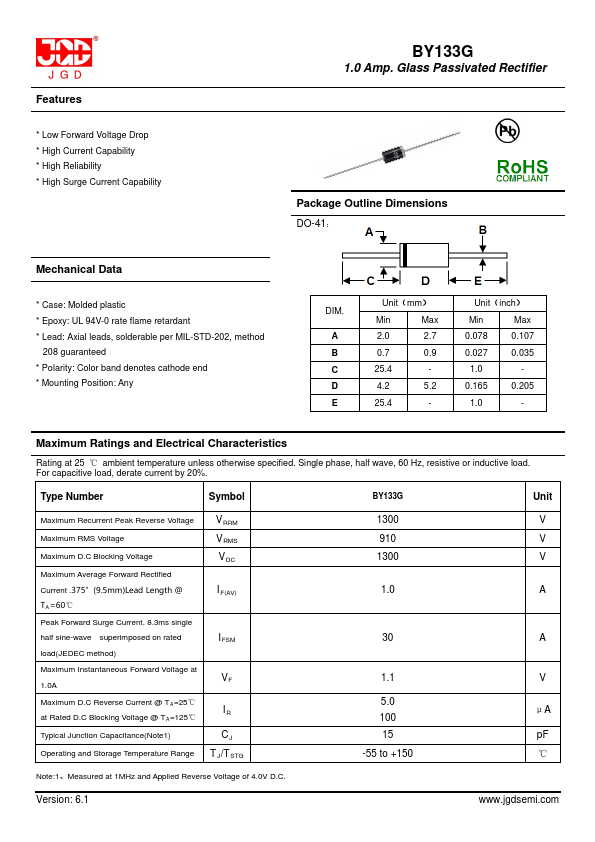

BY133G
1.0 Amp. Glass Passivated Rectifier
Package Outline Dimensions
DO-41：
Mechanical Data
* Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Axial leads, solderable per MIL-STD-202, method
208 guaranteed * Polarity: Color band denotes cathode end * Mounting Position: Any
DIM.
A B C D E
Unit（mm）
Min
Max
2.0
2.7
0.7
0.9
25.4
-
4.2
5.2
25.4
-
Unit（inch）
Min
Max
0.078
0.107
0.027
0.035
1.0
-
0.165
0.205
1.0
-
Maximum Ratings and Electrical Characteristics
Rating at 25 ℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
