HER507G, HER501G - 5.0 Amps. Glass Passivated High Efficiency Rectifiers

Name: HER507G
SKU: HER507G-1209400

JGD

The HER507G by JGD is a 5.0 Amps. Glass Passivated High Efficiency Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	HER507G, HER501G
Manufacturer	JGD
File Size	452.10 KB
Description	5.0 Amps. Glass Passivated High Efficiency Rectifiers
Datasheet	HER501G-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: HER507G, HER501G. Please refer to the document for exact specifications by model.
Additional preview pages of the HER507G datasheet.

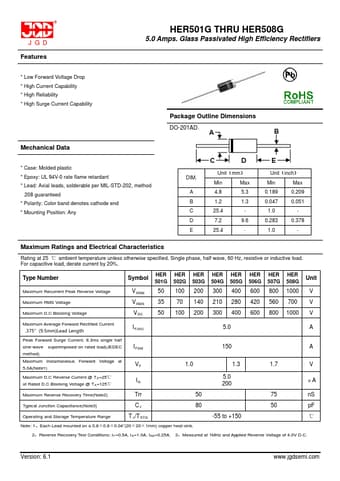

HER501G THRU HER508G 5.0 Amps. Glass Passivated High Efficiency Rectifiers.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability Mechanical Data Package Outline Dimensions DO-201AD：.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed.
Polarity: Color band denotes cathode end.
Mounting Position: Any DIM. A B C D E Unit（mm） M.
