MB210S - Surface Mount Schottky Bridge Rectifiers

Product Overview

JGD

📥 Download Datasheet

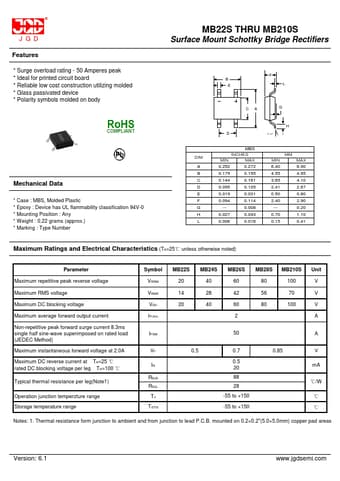

MB210S Surface Mount Schottky Bridge Rectifiers by JGD - Datasheet Preview — Datasheet preview – MB210S

Datasheet Details

Part number	MB210S
Manufacturer	JGD
File Size	257.59 KB
Description	Surface Mount Schottky Bridge Rectifiers
Datasheet	MB210S Datasheet
Note	This datasheet PDF includes multiple part numbers: MB210S, MB22S. Please refer to the document for exact specifications by model.
Additional preview pages of the MB210S datasheet.

Product details

Features

Surge overload rating - 50 Amperes peak.
Ideal for printed circuit board.
Reliable low cost construction utilizing molded.
Glass passivated device.
Polarity symbols molded on body Mechanical Data.
Case : MBS, Molded Plastic.
Epoxy : Device has UL flammability classification 94V-0.
Mounting Position : Any.
Weight : 0.22 grams (approx. ).
Marking : Type Number MB22S THRU MB210S Surface Mount Schottky Bridge Rectifiers F B EL CA G H D 0~10° MB.
