MB22S - Surface Mount Schottky Bridge Rectifiers

MB22S Description

.

MB22S Features

* Surge overload rating - 50 Amperes peak
* Ideal for printed circuit board
* Reliable low cost construction utilizing molded
* Glass passivated device
* Polarity symbols molded on body Mechanical Data
* Case : MBS, Molded Plastic
* Epoxy : Device has UL flammability clas

📥 Download Datasheet

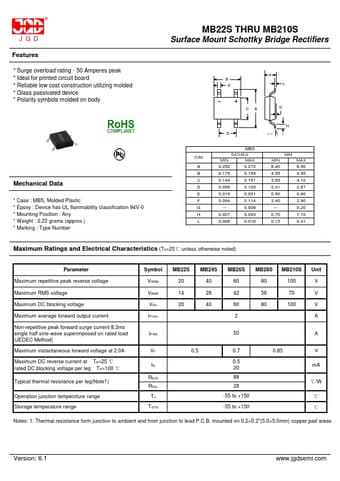

Preview of MB22S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB22S
Manufacturer
JGD
File Size
257.59 KB
Datasheet
MB22S-JGD.pdf
Description
Surface Mount Schottky Bridge Rectifiers
