MB2244 - 16-bit buffer/line driver

MB2244 Description

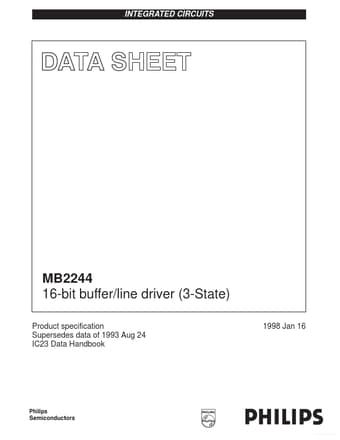

INTEGRATED CIRCUITS MB2244 16-bit buffer/line driver (3-State) Product specification Supersedes data of 1993 Aug 24 IC23 Data Handbook 1998 Jan 16 P.
The MB2244 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

MB2244 Features

* 16-bit bus interface
* Multiple VCC and GND pins minimize switching noise
* Power-up 3-State
* 3-State buffers
* Output capability: +64 mA/
* 32mA
* Latch-up protection exceeds 500mA per Jedec Std 17
* ESD protection exceeds 2000 V per

📥 Download Datasheet

Preview of MB2244 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB2244
Manufacturer
NXP ↗
File Size
100.94 KB
Datasheet
MB2244_NXP.pdf
Description
16-bit buffer/line driver
