MB2245

16-bit transceivers

MB2245 Features

* 16-bit bidirectional bus interface

* Power

* up 3-State

* Multiple VCC and GND pins minimize switching noise

* 3-State buffers

* Output capability: +64 mA/

* 32mA

* Latch-up protection exceeds 500mA per Jedec Std 17

* ESD protect

MB2245 General Description

The MB2245 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive. The MB2245 device is a 16-bit transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions. The control function implementation.

MB2245 Datasheet (106.95 KB)

Preview of MB2245 PDF

Datasheet Details

Part number:

MB2245

Manufacturer:

NXP ↗

File Size:

106.95 KB

Description:

16-bit transceivers.

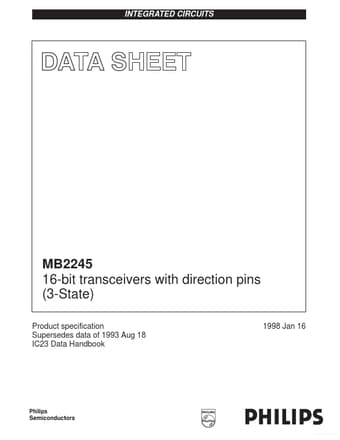

INTEGRATED CIRCUITS MB2245 16-bit transceivers with direction pins (3-State) Product specification Supersedes data of 1993 Aug 18 IC23 Data Handbook .
