MB2241 - 16-bit buffer/line driver

MB2241 Description

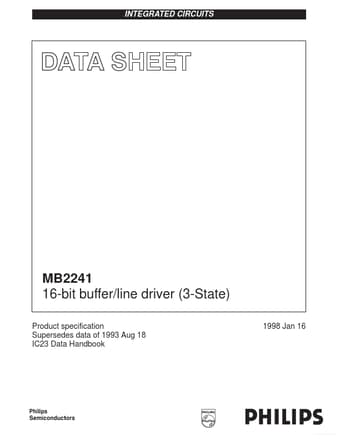

INTEGRATED CIRCUITS MB2241 16-bit buffer/line driver (3-State) Product specification Supersedes data of 1993 Aug 18 IC23 Data Handbook 1998 Jan 16 P.
The MB2241 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

MB2241 Features

* 16
* bit bus interface
* Power 3-State
* Multiple VCC and GND pins minimize switching noise
* 3-State buffers
* Output capability: +64mA/
* 32mA
* Latch-up protection exceeds 500mA per Jedec Std 17
* ESD protection exceeds 2000 V

📥 Download Datasheet

Preview of MB2241 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB2241
Manufacturer
NXP ↗
File Size
106.94 KB
Datasheet
MB2241_NXP.pdf
Description
16-bit buffer/line driver
