MB220, MB24 Datasheet - Pan Jit

MB220 (MB24 - MB220) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

MB220 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

* For surface mounted applications

* Low profile package

* Built-in strain relief

* Metal to silicon rectifier. majority carrier conduction

* Low power loss,high efficiency

MB24_PanJit.pdf

This datasheet PDF includes multiple part numbers: MB220, MB24. Please refer to the document for exact specifications by model.

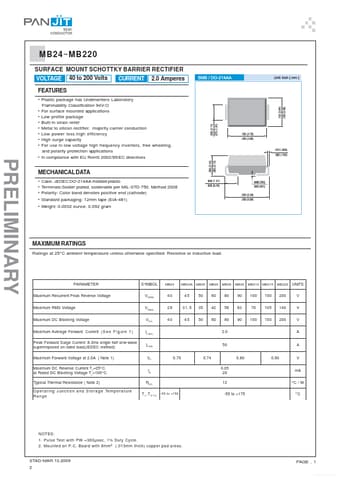

MB220 Datasheet Preview Page 2

Datasheet Details

Part number:

MB220, MB24

Manufacturer:

Pan Jit

File Size:

109.90 KB

Description:

(mb24 - mb220) surface mount schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: MB220, MB24.
Please refer to the document for exact specifications by model.
