* High Surge Current Capability Designed for Surface Mount Application MECHANICAL DATA Case: MBF Terminals: Solderable per MIL-STD-750, Method 2026 MARKING Part Number MB240F-C MB260F-C Marking MB24F MB26F Part Number MB2100F-C MB2200F-C Marking MB210F MB220F PACKAGE INFORMATION Package MPQ M
MB2200F-C Datasheet (288.25 KB)
MB2200F-C
SeCoS
288.25 KB
Surface mount bridge rectifiers.
Elektronische Bauelemente

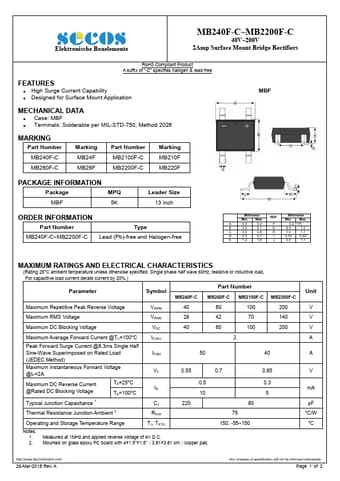

MB240F-C~MB2200F-C
40V~200V 2Amp Surface Mount Bridge Rectifiers
RoHS Compliant Product A suffix of “-C” specifies halogen.
