MB220S, MB22S - Surface Mount Glass Passivated Bridge Rectifier

MB220S Description

MB22S THRU MB220S Surface Mount Glass Passivated Bridge Rectifier MBS .

MB220S Features

* ‧Schottky Brrier Chip ‧Low Power Loss,High Efficiency ‧Ideally Suited for Automatic Assembly ‧Surge Overload Rating to 50A Peak ‧Plastic Case Material has UL Flammability Classification Rating 94V-0 Ordering Information Part No. MB22S THRU MB220S MB22S THRU MB220S-H Remark General Halogen Free Pa

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MB220S, MB22S. Please refer to the document for exact specifications by model.

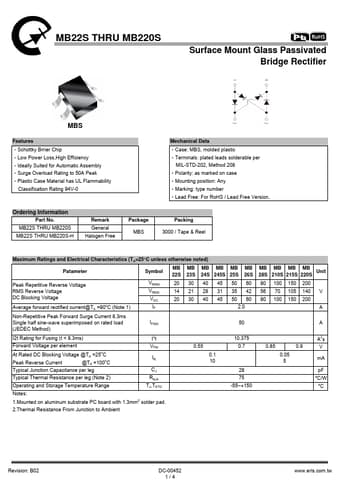

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB220S, MB22S
Manufacturer
Eris
File Size
399.07 KB
Datasheet
MB22S-Eris.pdf
Description
Surface Mount Glass Passivated Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: MB220S, MB22S.
Please refer to the document for exact specifications by model.
