Part number:
S2MBF
Manufacturer:
JGD
File Size:
136.73 KB
Description:
Surface mount general purpose silicon rectifiers.

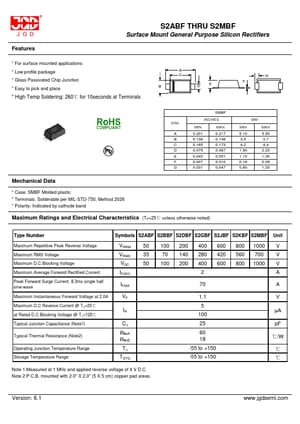

* S2ABF THRU S2MBF Surface Mount General Purpose Silicon Rectifiers
* For surface mounted applications
* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place A C B DE
* High Temp Soldering: 260℃ for 10seconds at Terminals G F DIM. A B C D E F G SMBF
S2MBF
JGD
136.73 KB
Surface mount general purpose silicon rectifiers.
