KCD1-104 - Rocker Switch

The KCD1-104 by JIALONG ELECTRON is a Rocker Switch. Below is the official datasheet preview.

Datasheet Details

Part number	KCD1-104
Manufacturer	JIALONG ELECTRON
File Size	262.23 KB
Description	Rocker Switch
Datasheet	KCD1-104-JIALONGELECTRON.pdf

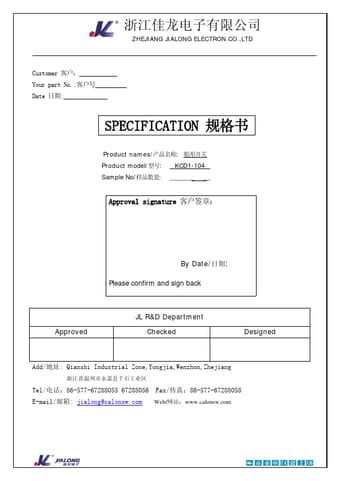

Additional preview pages of the KCD1-104 datasheet.

5.3 Item 5.1.1 Operating force 5.1.2 Operating travel Vibration Test condition Criteria A static load shall be applied to the tip of button in positive operating direction. . the travel distance for the button from side to side shall be measured. . Switch shall be mount to a testing machine test. Parameters of test as follows ,： (1) Vibration frequency range: 10-55 Hz ：10-55 Hz (2) Total amplitude : 1.5mm (3) Sweep cycle ： 10-55-10 Hz (4) Method of changing the sweep vibration freq.
