2SC3149 NPN Transistor

2SC3149 Description

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-220-3L Plastic-Encapsulate Transistors 2SC3149 TRANSISTOR (NPN) TO-220-3L 1.BASE 2.COLLECTO.

2SC3149 Features

* z High breakdown voltage(VCBO>900V) z Fast switching speed z Wide ASO MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC TJ Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current
* Continuous Collector Power Dissipation

📥 Download Datasheet

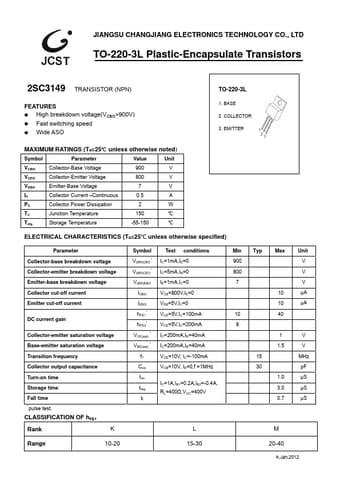

Preview of 2SC3149 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3149
Manufacturer
JIANGSU CHANGJIANG
File Size
313.99 KB
Datasheet
2SC3149-JIANGSUCHANGJIANG.pdf
Description
NPN Transistor
