2SC3144 - PNP/NPN Transistors

2SC3144 Description

Ordering number:ENN1058D PNP/NPN Epitaxial Planar Silicon Darlington Transistors 2SA1258/2SC3144 60V/3A for High-Speed Drivers Applications .

2SC3144 Features

* High fT.
* High switching speed.
* Wide ASO. Package Dimensions unit:mm 2010C [2SA1258/2SC3144] 10.2 3.6 5.1 4.5 1.3 2.7 6.3 15.1 18.0 5.6 1.2 2.7 14.0 ( ) : 2SA1258 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emit

📥 Download Datasheet

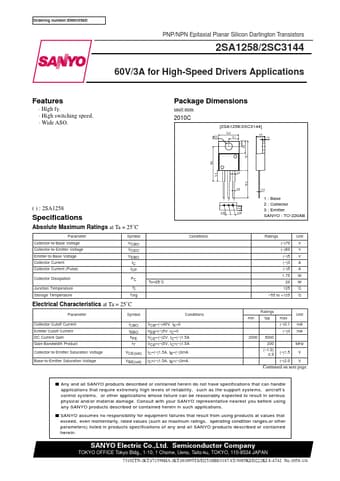

Preview of 2SC3144 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC3144
Manufacturer
Sanyo Semicon Device
File Size
41.37 KB
Datasheet
2SC3144_SanyoSemiconDevice.pdf
Description
PNP/NPN Transistors
