2SC3149 - NPN Transistor

Product Overview

Sanyo Semicon Device

Part number	2SC3149
Manufacturer	Sanyo Semicon Device
File Size	100.71 KB
Description	NPN Transistor
Datasheet	2SC3149 Datasheet

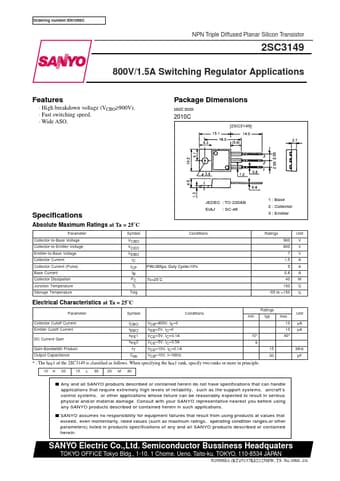

Additional preview pages of the 2SC3149 datasheet.

High breakdown voltage (VCBO≥900V).
Fast switching speed.
Wide ASO. Package Dimensions unit:mm 2010C [2SC3149] JEDEC : TO-220AB EIAJ : SC-46 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP IB PC Tj Tstg Tc=25˚C PW≤300µs, Duty Cycle≤10%.
