JCT1225, JCT1025 Datasheet - JIEJIE

JCT1225 - 25A SCRs

JCT1025/1225 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools e.

JCT1225 Features

* Symbol VDRM/ VRRM IT(RMS) IGT JCT1025 1000V 25A ≤ 40mA JCT1225 1200V ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Tstg Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitiv

JCT1025-JIEJIE.pdf

This datasheet PDF includes multiple part numbers: JCT1225, JCT1025. Please refer to the document for exact specifications by model.

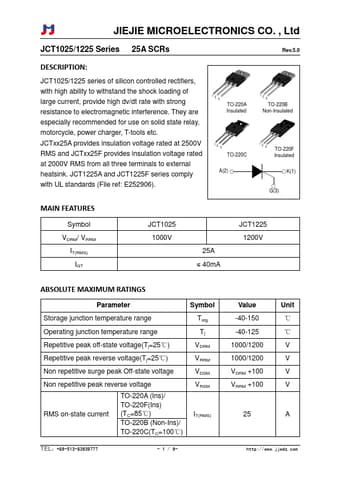

JCT1225 Datasheet Preview Page 2 JCT1225 Datasheet Preview Page 3

Datasheet Details

Part number:

JCT1225, JCT1025

Manufacturer:

JIEJIE

File Size:

370.21 KB

Description:

25a scrs.

Note:

This datasheet PDF includes multiple part numbers: JCT1225, JCT1025.
Please refer to the document for exact specifications by model.
