JCT1231A, JCT1231 Datasheet - JIEJIE

JCT1231A - 31A SCRs

JCT1231 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools etc. J.

JCT1231A Features

* Rev.2.0 1 2 3 TO-220A 1 2 3 TO-220B Insulated Non-Insulated 1 2 3 TO-220C A(2) K(1) G(3) Symbol IT(RMS) VDRM /V RRM IGT JCT1231 31A 1200V ≤40mA ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Operating junction temperature range Repetitive peak off-state vo

JCT1231-JIEJIE.pdf

This datasheet PDF includes multiple part numbers: JCT1231A, JCT1231. Please refer to the document for exact specifications by model.

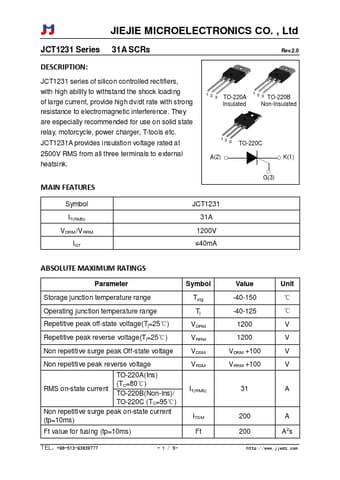

JCT1231A Datasheet Preview Page 2 JCT1231A Datasheet Preview Page 3

Datasheet Details

Part number:

JCT1231A, JCT1231

Manufacturer:

JIEJIE

File Size:

294.94 KB

Description:

31a scrs.

Note:

This datasheet PDF includes multiple part numbers: JCT1231A, JCT1231.
Please refer to the document for exact specifications by model.
