JCT1225A

25A SCRs

JCT1225A Features

* Symbol VDRM/ VRRM IT(RMS) IGT JCT1025 1000V 25A ≤ 40mA JCT1225 1200V ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Tstg Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitiv

JCT1225A General Description

JCT1025/1225 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools e.

JCT1225A Datasheet (370.21 KB)

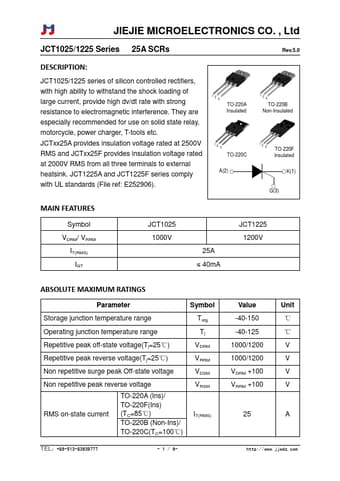

Preview of JCT1225A PDF

Datasheet Details

Part number:

JCT1225A

Manufacturer:

JIEJIE

File Size:

370.21 KB

Description:

25a scrs.
