K1300G Datasheet - JIEJIE

Sidac

K1300G Features

* Excellent capability of absorbing transient surge

* Quick response to surge voltage (ns Level)

* Glass-passivated junctions

* High voltage lcmp ignitors ABSOLUTE MAXIMUM RATINGS (TA=25ºC, RH=45%-75%, unless otherwise noted) Parameter Symbol Sto

K1300G General Description

The sidac is a silicon bilateral voltage triggered switch with greater power-handling capabilities than standard diacs. Upon application of a voltage exceeding the sidac breakover voltage point, the sidac switches on through a negative resistance region to a low on-state voltage. Conduction continu.

K1300G Datasheet (147.43 KB)

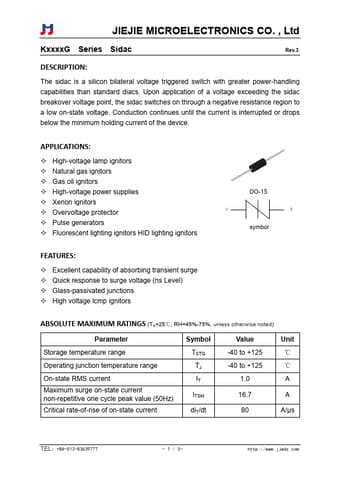

K1300G Datasheet Preview — Preview of K1300G PDF

Datasheet Details

Part number:

K1300G

Manufacturer:

JIEJIE

File Size:

147.43 KB

Description:

Sidac.
