K1310A Datasheet - Toshiba Semiconductor

K1310A N-Channel MOSFET

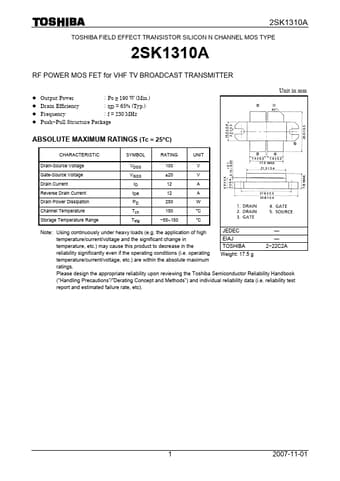

2SK1310A TOSHIBA FIELD EFFECT TRANSISTOR SILICON N CHANNEL MOS TYPE 2SK1310A RF POWER MOS FET for VHF TV BROADCAST TRANSMITTER z Output Power : Po ≥ 190 W (Min.) z Drain Efficiency : ηD = 65% (Typ.) z Frequency : f = 230 MHz z Push Pull Structure Package Unit in mm ABSOLUTE MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC SYMBOL RATING UNIT Drain-Source Voltage Gate-Source Voltage Drain Current Reverse Drain Current Drain Power Dissipation Channel Temperature Storage Temperature.

K1310A-ToshibaSemiconductor.pdf
