K1316 - 2SK1316

K1316 Description

2SK1315(L)(S), 2SK1316(L)(S) Silicon N-Channel MOS FET Application High speed power switching .

K1316 Features

* Low on-resistance
* High speed switching
* Low drive current
* No secondary breakdown
* Suitable for switching regulator, DC-DC converter and motor driver Outline LDPAK 4 4 123 D 12 3 G S 1. Gate 2. Drain 3. Source 4. Drain 2SK1315(L)(S), 2SK1316(L)(

📥 Download Datasheet

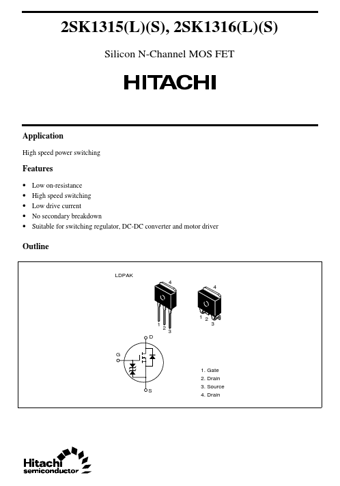

Preview of K1316 PDF
datasheet Preview Page 2 datasheet Preview Page 3
