K1315, K1316 Datasheet - Hitachi Semiconductor

K1315, K1316, 2SK1316

2SK1315(L)(S), 2SK1316(L)(S) Silicon N-Channel MOS FET Application High speed power switching .

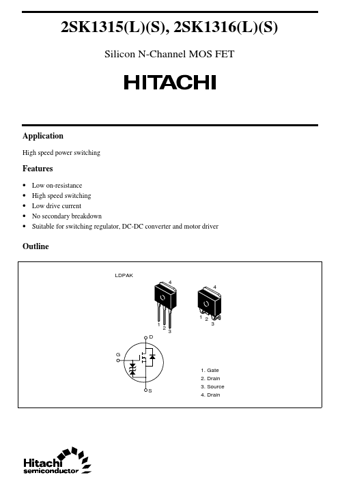

datasheet Preview Page 1 from Datasheet4u.com

K1316-HitachiSemiconductor.pdf

K1315 Datasheet Preview — This datasheet PDF includes multiple part numbers: K1315, K1316. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

K1315, K1316

Manufacturer:

Hitachi Semiconductor

File Size:

29.47 KB

Description:

2SK1316

Note:

This datasheet PDF includes multiple part numbers: K1315, K1316.
Please refer to the document for exact specifications by model.

Features

* Low on-resistance
* High speed switching
* Low drive current
* No secondary breakdown
* Suitable for switching regulator, DC-DC converter and motor driver Outline LDPAK 4 4 123 D 12 3 G S 1. Gate 2. Drain 3. Source 4. Drain 2SK1315(L)(S), 2SK1316(L)(
