SM530 - GENERAL PURPOSE RECTIFIER

Datasheet Summary

Description

Plastic package has underwriters laboratories flammability classification 94V-0 For surface mounted applications in order to optimize board space Glass passivated chip junction Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA Case: JEDEC DO-214A

📥 Download Datasheet

Datasheet preview – SM530

Datasheet Details

Part number SM530
Manufacturer JIEJIE
File Size 217.24 KB
Description GENERAL PURPOSE RECTIFIER
Datasheet download datasheet SM530 Datasheet

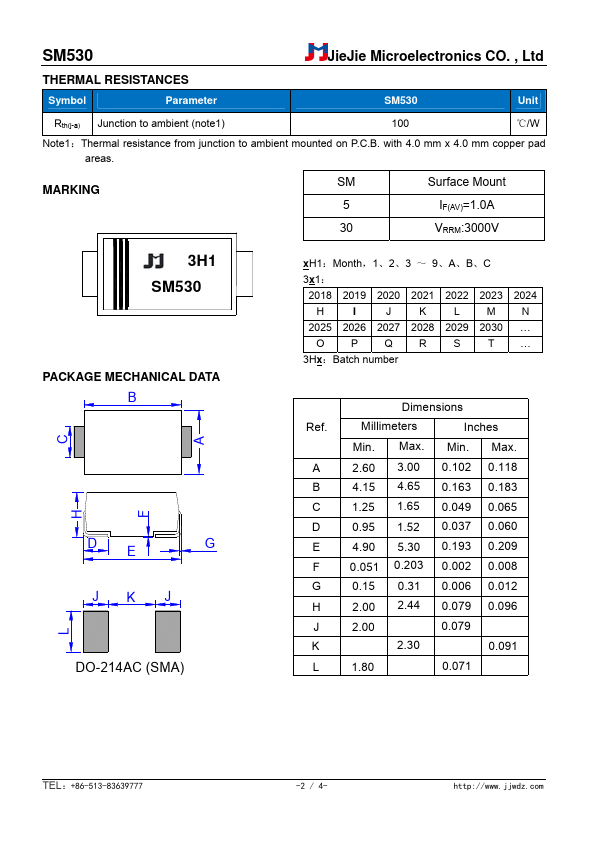

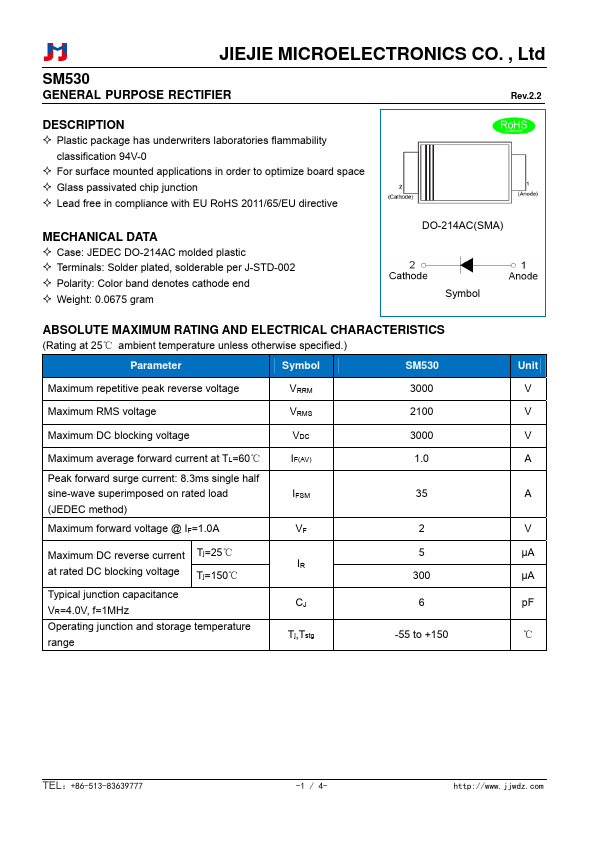

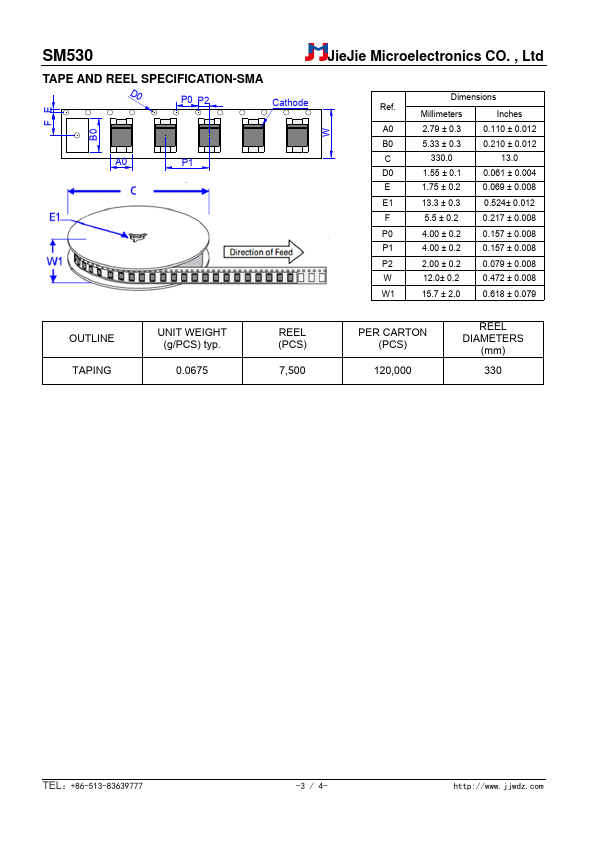

Additional preview pages of the SM530 datasheet.
