3DD13001A - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

Download the 3DD13001A datasheet PDF (3DD13001A_JILINSINO included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for high voltage fast-switching npn power transistor.

Description

New Rev.

Features

  • z High breakdown voltage z High current capability z High switching speed z High reliability z RoHS product ORDER.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (3DD13001A_JILINSINO-MICROELECTRONICS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 3DD13001A
Manufacturer JILIN SINO-MICROELECTRONICS
File Size 238.10 KB
Description HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
Datasheet download datasheet 3DD13001A Datasheet

📁 Similar Datasheet

  • 3DD13001A1 - Silicon NPN Transistor (Huajing Microelectronics)
  • 3DD13001 - High Voltage Fast Switching NPN Power Transistor (GME)
  • 3DD13001 - TRANSISTOR (Jiangsu Changjiang Electronics)
  • 3DD13001 - Plastic-Encapsulated Transistors (TRANSYS Electronics)
  • 3DD13001 - NPN Transistor (SeCoS)
  • 3DD13001 - NPN Transistors (Kexin)
  • 3DD13001 - NPN Transistor (WEJ)
  • 3DD13001B - TO-92 Plastic-Encapsulate Transistors (JCST)
  • 3DD13001P1 - NPN Transistor (Huajing Microelectronics)
  • 3DD13002 - High Voltage Fast Switching NPN Power Transistor (GME)
Other Datasheets by JILIN SINO-MICROELECTRONICS
  • 3DD13001H - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
  • 3DD13001S - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
  • 3DD13002E - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
  • 3DD13002S - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
  • 3DD13003 - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
  • 3DD13003A - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
  • 3DD13003X - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
  • 3DD13005 - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

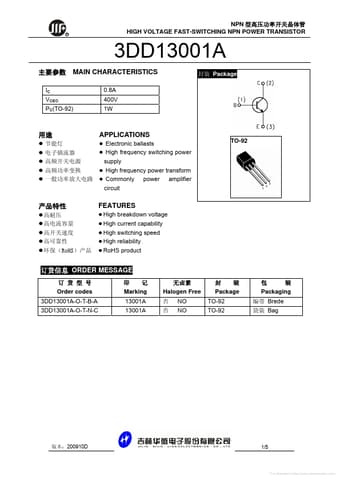

R NPN HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR 3DD13001A IC VCEO PC(TO-92) MAIN CHARACTERISTICS 0.8A 400V 1W Package z z z z z APPLICATIONS z Electronic ballasts z High frequency switching power TO-92 supply z High frequency power transform z Commonly power amplifier circuit z z z z z （RoHS） FEATURES z High breakdown voltage z High current capability z High switching speed z High reliability z RoHS product ORDER MESSAGE Order codes 3DD13001A-O-T-B-A 3DD13001A-O-T-N-C Halogen Free NO NO TO-92 TO-92 Brede Bag Marking 13001A 13001A Package Packaging ：200910D 1/5 Free Datasheet http://www.datasheet4u.com/ R 3DD13001A ABSOLUTE RATINGS (Tc=25℃) Parameter Symbol VCEO VEBO IC ICP PC Tj Tstg Value 600 400 9 0.8 1.
