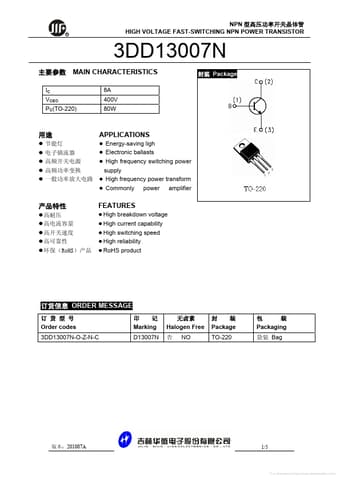

* z High breakdown voltage z High current capability z High switching speed z High reliability z RoHS product ORDER MESSAGE Order codes 3DD13007N-O-Z-N-C Halogen Free NO Marking D13007N Package TO-220 Packaging Bag ：201007A 1/5 Free Datasheet http://www.datasheet4u.com/ R 3DD13007N
3DD13007N Datasheet (329.52 KB)
3DD13007N
JILIN SINO-MICROELECTRONICS
329.52 KB
High voltage fast-switching npn power transistor.
R
NPN HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
3DD13007N
IC VCEO PC(TO-220)
MAIN CHARACTERISTICS
8A 400V 80W
Package
z z z z z
.
