* Low gate charge
* Low Crss
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability
* RoHS product ORDER MESSAGE Order codes - Halogen-Tube JCS50N06VH-V-B JCS50N06RH-R-B JCS50N06CH-C-B JCS50N06FH-F-B - Halogen-Free-Tube JCS50N06VH-V-BR JCS50N06RH-R-BR JCS50N0
JCS50N06CH Datasheet (1.57 MB)
JCS50N06CH
JILIN SINO-MICROELECTRONICS
1.57 MB
N-channel mosfet.

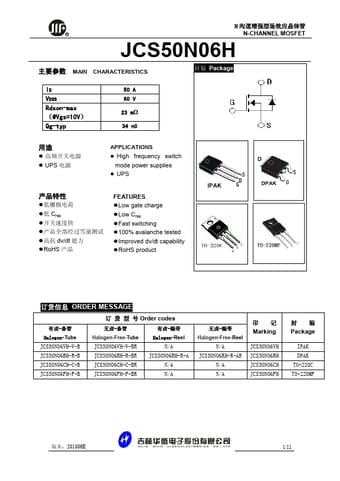

N R N-CHANNEL MOSFET JCS50N06H MAIN CHARACTERISTICS Package ID VDSS Rdson-max （@Vgs=10V） Qg-typ 50 A 60 V 23 mΩ 34 nC UPS A.
