JCS50N06VH

N-CHANNEL MOSFET

JILIN SINO-MICROELECTRONICS

📥 Download PDF (1.57 MB)

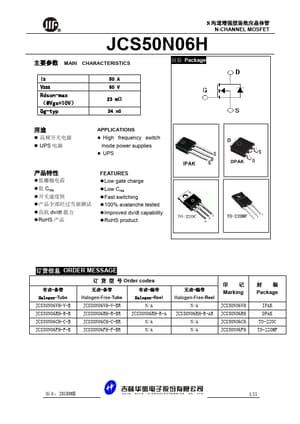

JCS50N06VH Datasheet Preview Page 1 — Preview of JCS50N06VH Datasheet

Datasheet Details

Part number:

JCS50N06VH

Manufacturer:

JILIN SINO-MICROELECTRONICS

File Size:

1.57 MB

Download:

📄 Download JCS50N06VH Datasheet PDF

Description:

N-channel mosfet.
N R N-CHANNEL MOSFET JCS50N06H MAIN CHARACTERISTICS Package ID VDSS Rdson-max （@Vgs=10V） Qg.
-typ 50 A 60 V 23 mΩ 34 nC * * UPS APPLICATIONS * High frequency switch mode power supplies * .

✔ JCS50N06VH Features

Low gate charge
Low Crss
Fast switching
100% avalanche tested
Improved dv/dt capability
RoHS product ORDER MESSAGE Order codes - Halogen-Tube JCS50N06VH-V-B

✔ JCS50N06VH Application

High frequency switch mode power supplies
UPS
Crss
dv/dt
RoHS FEATURES
Low gate char
