JCS4N95A N-CHANNEL MOSFET

JILIN SINO

Description

N N-CHANNEL MOSFET R JCS4N95A MAIN CHARACTERISTICS ID 4.0 A VDSS 950 V Rdson（Vgs=10V） 4.5Ω -Max Qg-Typ 14.5nC Package *.* *.

📥 Download Datasheet

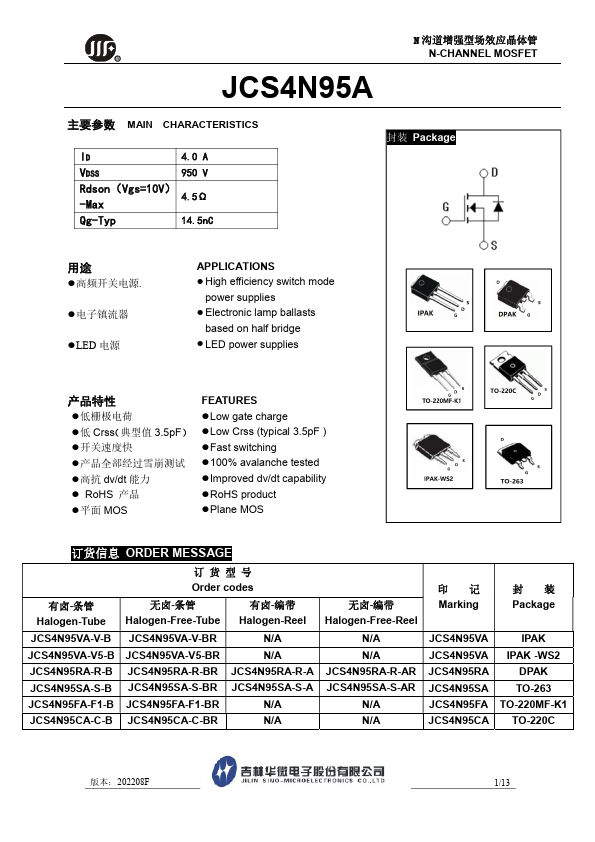

JCS4N95A Datasheet Preview — Preview of JCS4N95A PDF

Datasheet Specifications

Part number: JCS4N95A
Manufacturer: JILIN SINO
File Size: 2.18 MB
Datasheet: JCS4N95A-JILINSINO.pdf
Description: N-CHANNEL MOSFET

Features

* Low gate charge
* Low Crss (typical 3.5pF )
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability
* RoHS product
* Plane MOS ORDER MESSAGE - Halogen-Tube Order codes - - Halogen-Free-Tube Halogen-Reel - Halogen-Free-Reel Marking Package JCS4N95VA-

Applications

* High efficiency switch mode power supplies
* Electronic lamp ballasts based on half bridge
* LED power supplies
* Crss（ 3.5pF）
* dv/dt
* RoHS
