* Low gate charge
* Trench FS Technology,
* Saturation voltage: VCE(sat), typ = 1.7V IC = 20A and Tc = 25°C
* RoHS product ORDER MESSAGE Order codes - Halogen-Tube JT020N135WED-GE-B - Halogen-Free-Tube JT020N135WED-GE-BR - Halogen-Reel N/A - Halogen-Free-Reel N/A Marking JT

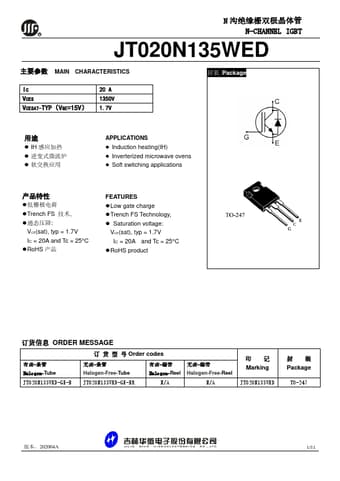

JT020N135WED Datasheet (859.29 KB)
JT020N135WED
JILIN SINO
859.29 KB
N-channel igbt.
N N-CHANNEL IGBT
R
JT020N135WED
MAIN CHARACTERISTICS
IC VCES VCESAT-TYP（VGE=15V）
20 A 1350V 1.7V
Package
* IH
*
*
APPLICATION.
